Master All Environments
Heat Resistant
Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.
50 ℃
Cold Resistant
Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).
-30 ℃
Wind Resistance
Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes.
12 m/s
Rugged and Dependable
Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.
IP56 IP55
Low-Noise and Anti-Ice Propellers
Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.
Flexible Deployment, Ultra- Long Transmission
DJI Dock 3 can be flexibly deployed, redefining the paradigm of opperations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at
elevated locations, allowing for flexible site selection of the dock.With the new DJI Enterprise app, deployment can be completed using just a smartphone.Additionally for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.
Fixed-Mounted Deployment
The new D-RTK 3 Relay Fixed Deployment Version [4] offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.

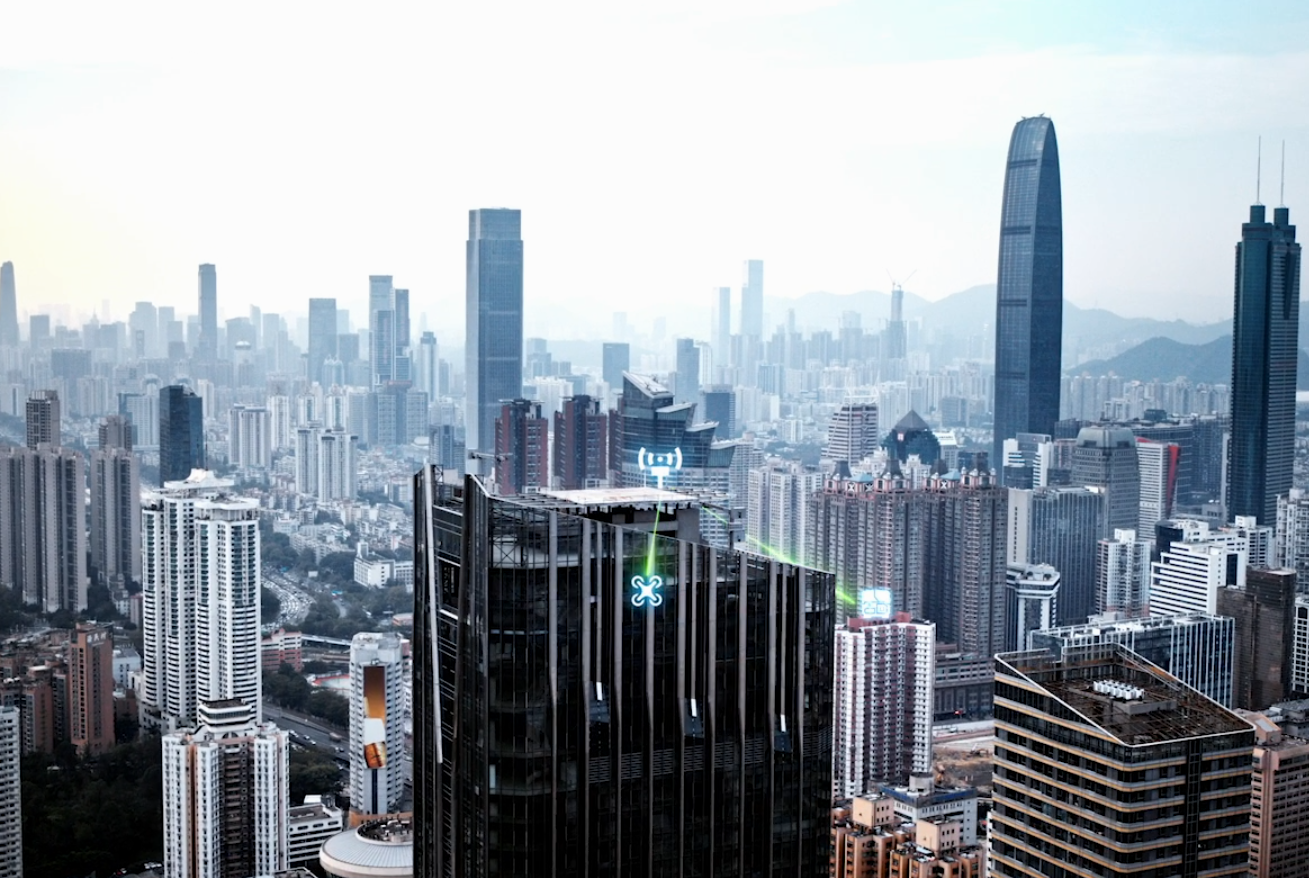

Near High-Rise Buildings
Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.

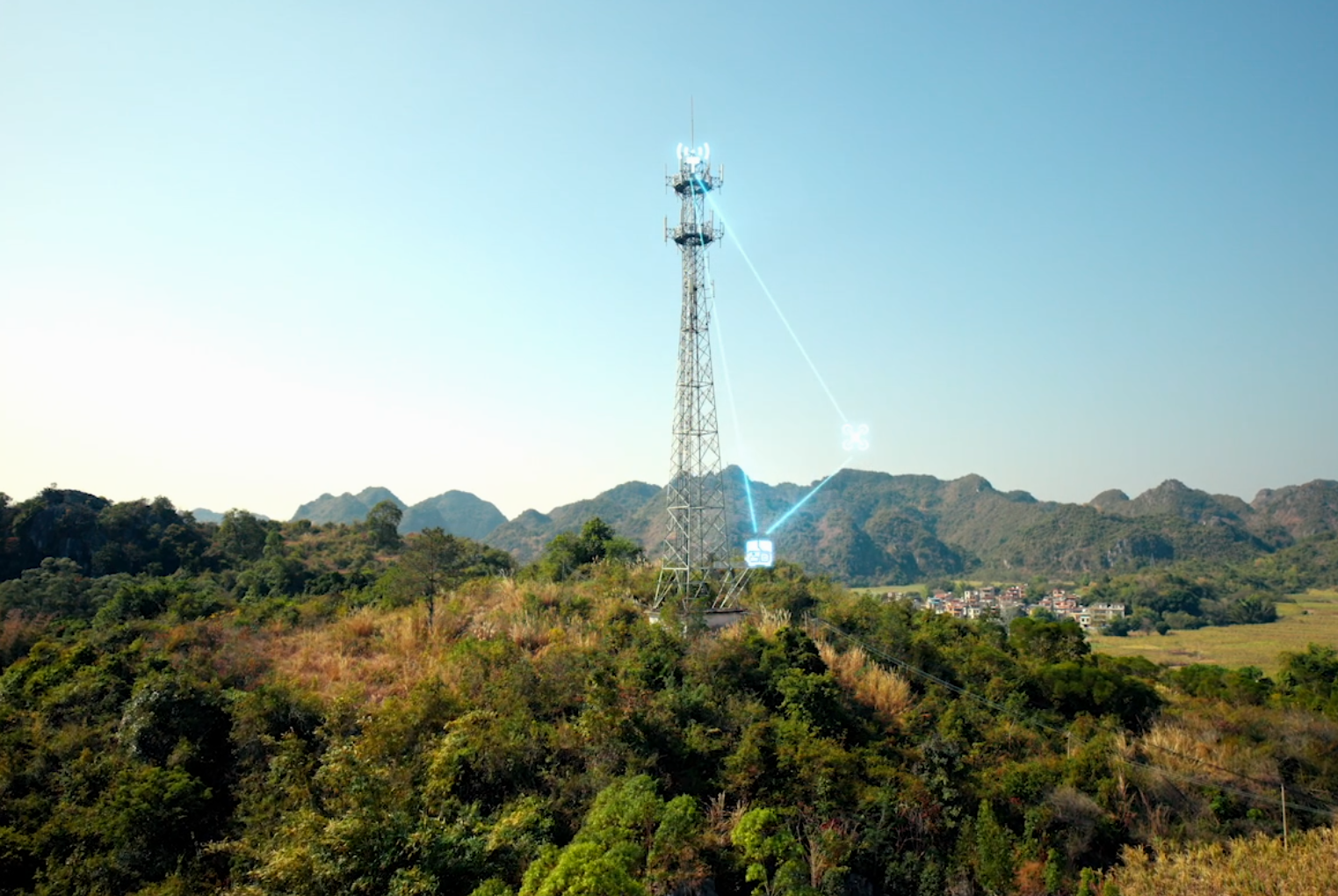

Near Communication Towers
Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.
Mobile Vehicle-Mounted Deployment
DJI Dock 3 is DJI's first Dock to support mobile vehicle-mounted deployment. Optimized for this purpose, the Dock's overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount [4] for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.
Cloud-Based Dock Location Calibration
During mobile operations, indoor personnel can use DJI FlightHub 2 to remotely set the dock's location and assign tasks on the cloud, thereby enhancing personnel and scheduling efficiency.
Safe Dual-Dock Deployment
Two docks can be deployed on a single vehicle simultaneously, achieving a significant efficiency boost. DJI Dock 3 employs a special take-over pattern to avoid drone-to-drone collisions and ensure operational safety, allowing the two docks to alternate tasks in an orderly manner.
Dual-Drone Rotation
Automated hovering rotation of two drones enables continuous real-time aerial footage transmission. In emergency scenarios, a spotlight can be equipped to provide full-time illumination.
High-Performance Drones

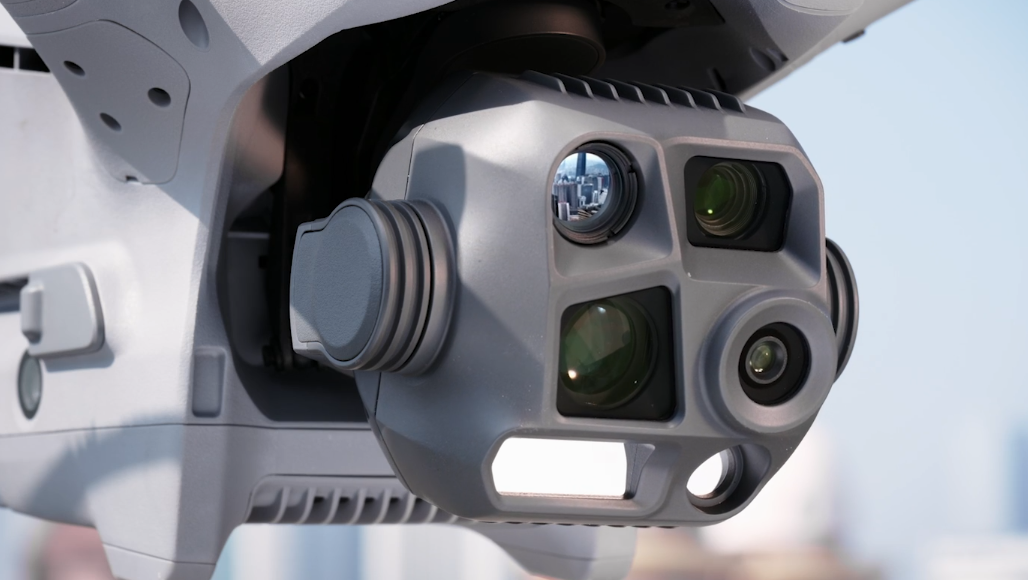

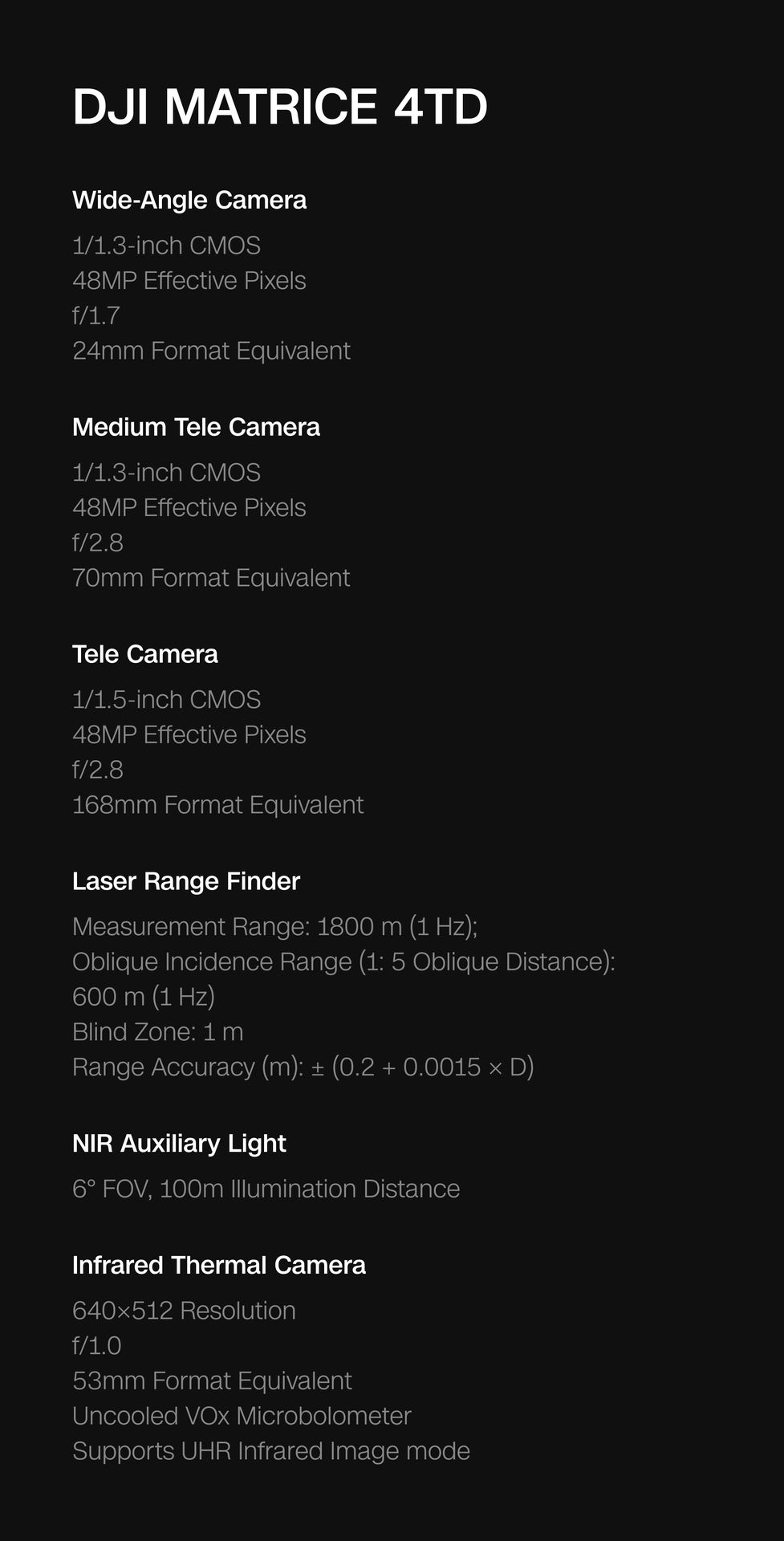

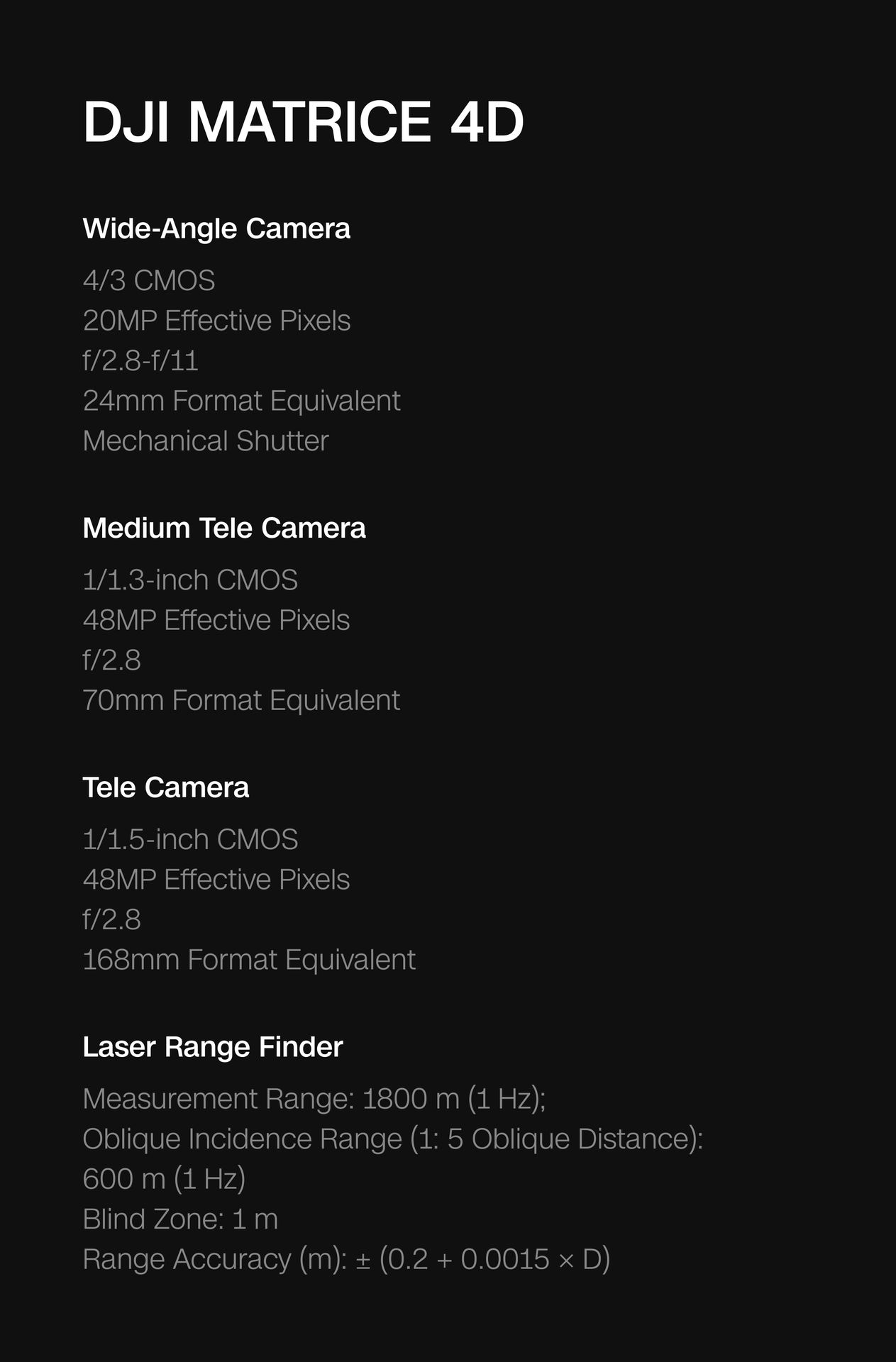

The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

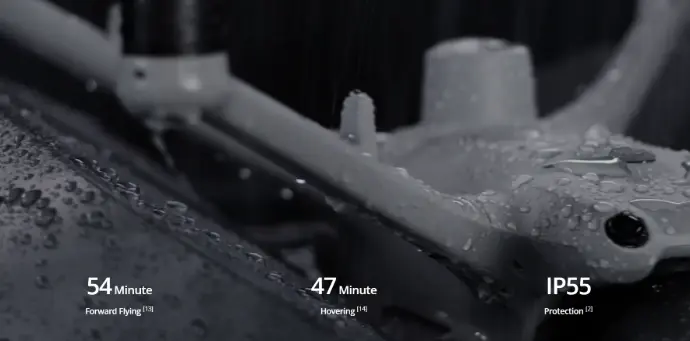

Longer Flight Time, Robust Protection
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.
Unmatched Clarity and Precision for Any Task, Anytime
Excels in Low-Light Environments
Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities.

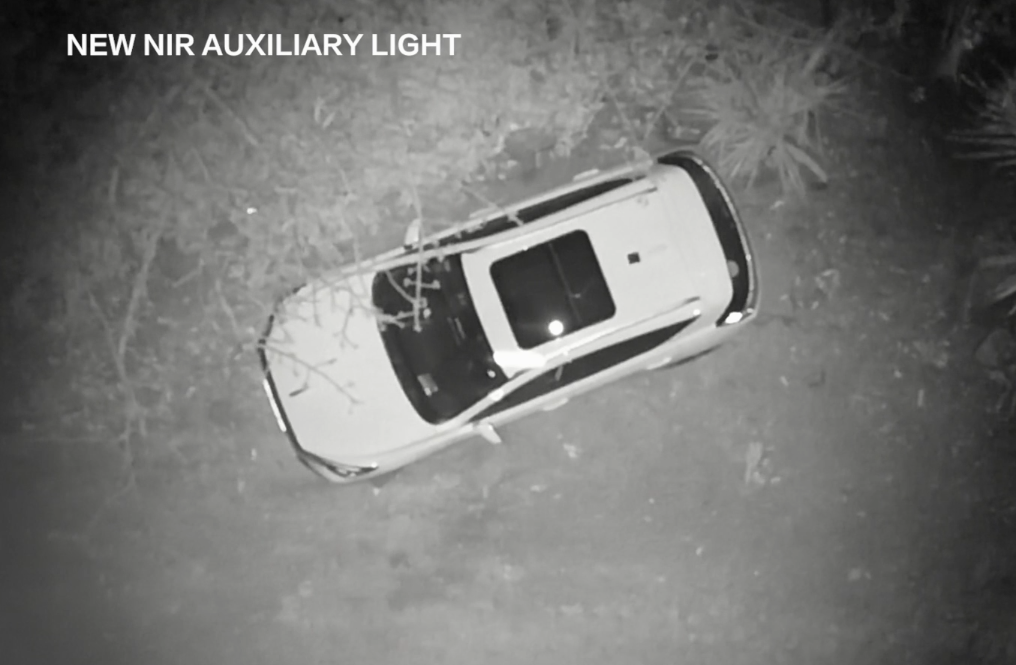

The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m. [10]
Matrice 4TD's infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.
High-Precision Surveying
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to meet various mapping requirements.
DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes, geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Clear Vision and Stable Images
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations.
The 48 MP tele camera captures details, like signs, from up to 250 m away. When using Matrice 4TD's tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.
Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.

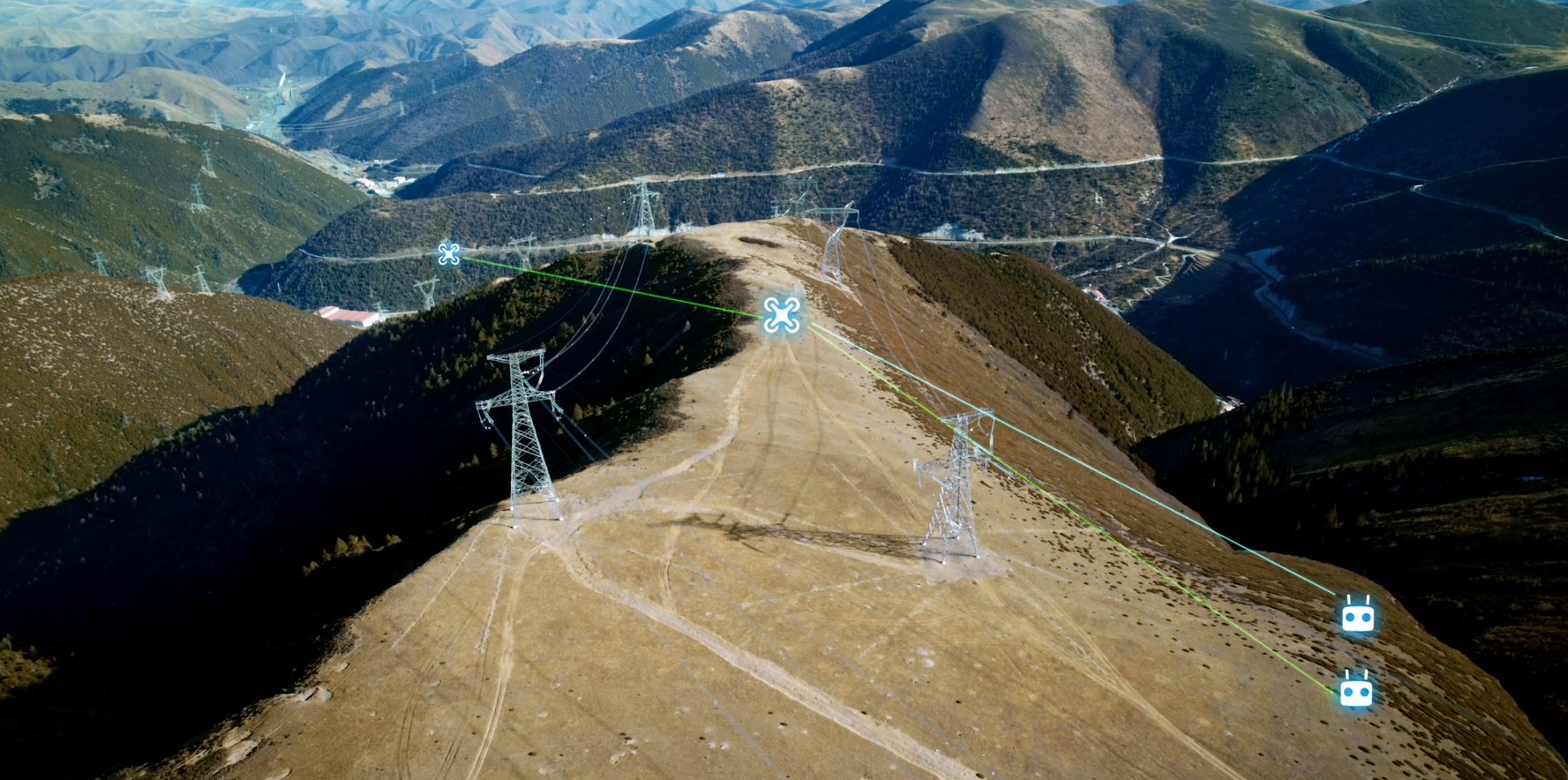

Seamless Airborne Relay for Mountainous Terrains

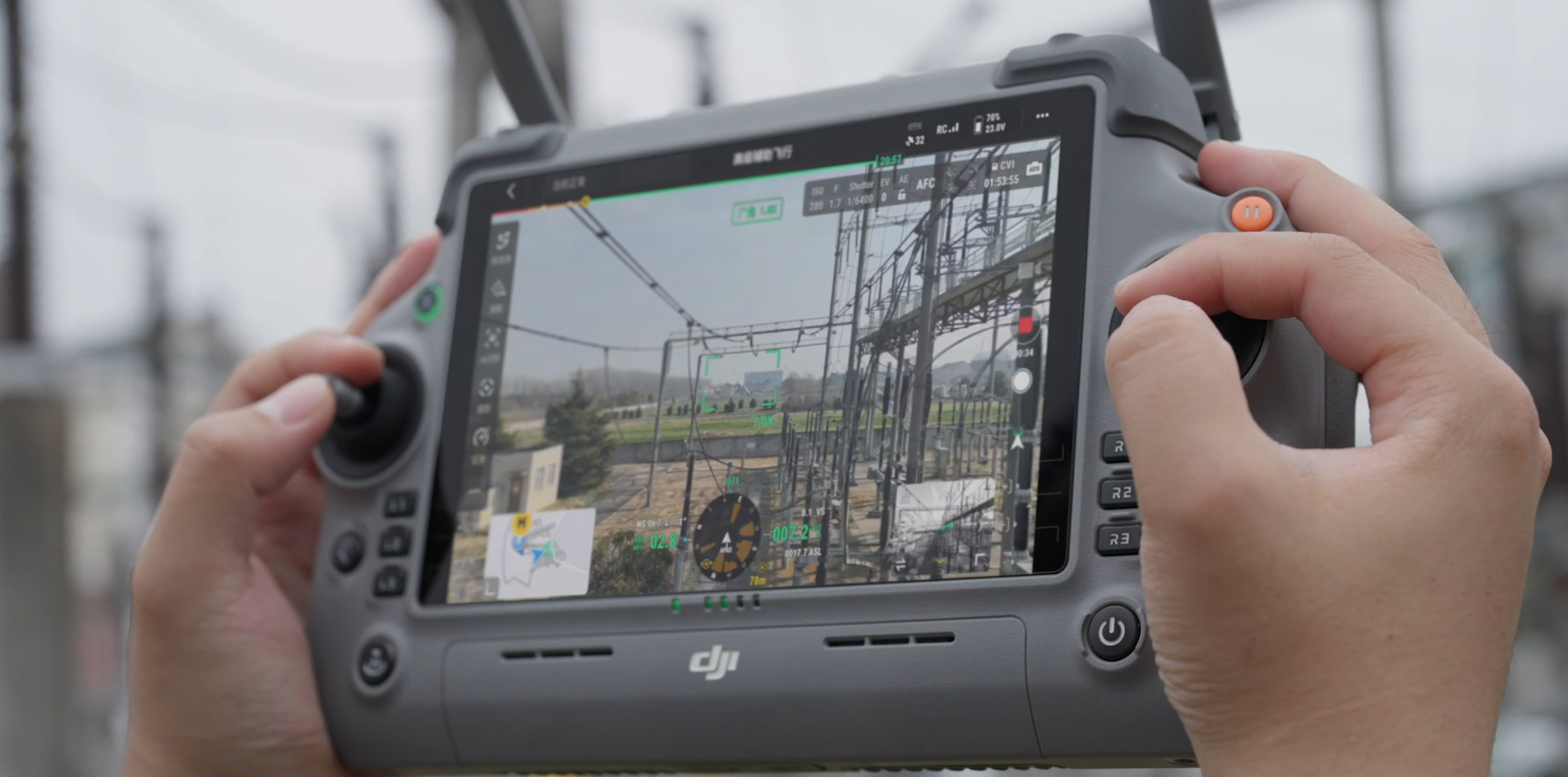

Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

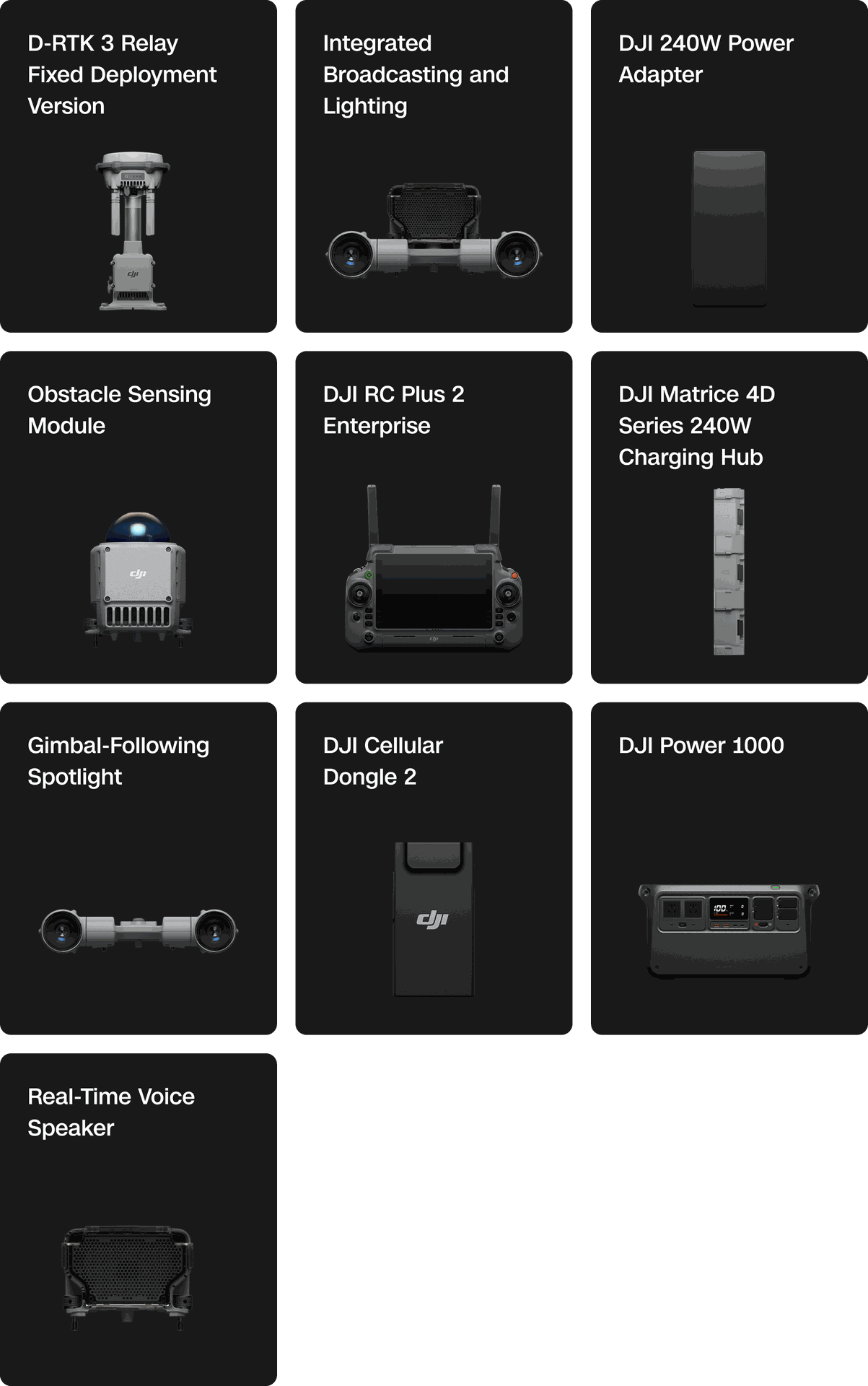

Comprehensive Accessory Upgrades
D-RTK 3 Relay Fixed Deployment Version
The D-RTK 3 Relay Fixed Deployment Version enables centimeter-level high-precision positioning for drones. Equipped with signal relay functionality, it can effectively address obstruction issues when deployed at elevated locations, significantly enhancing video transmission distance and easing deployment conditions of Dock 3.
